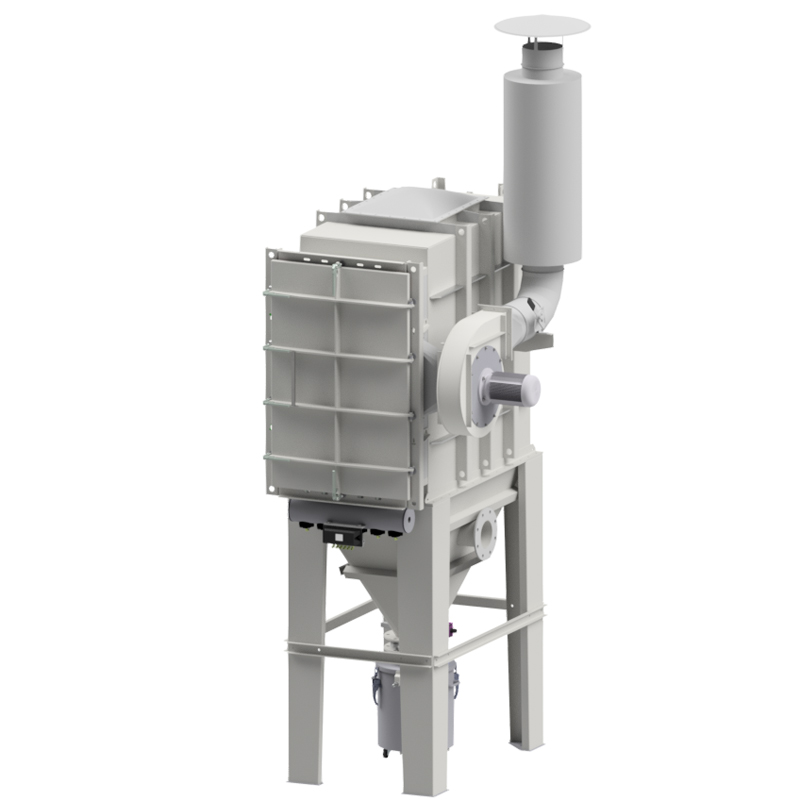

Dust extraction filter Aerstar AAS 1

Dust extraction filter as a free-standing unit with fan for the continuous extraction of dust generated during production or product handling.

The design, fan, filter medium and size are tailored precisely to the application, pressure and local conditions. Optionally with systems for explosion protection, product discharge, final filter and noise emission reduction.
Specially customisable for the filtration of highly explosive substances, hygiene applications and indoor air recirculation.

bg-filtration-dust-removal-filter-aerstar-aas-2
bg-filtration-dust-removal-filter-aerstar-aas-1
bg-filtration-dust-removal-filter-aerstar-aas-4
bg-filtration Extraction

Main areas of application:

  • Dedusting of mixing plants
  • Dedusting of bottling plants
  • Process dedusting
  • Dust extraction during filling or emptying
  • Dedusting of weighing and dosing systems
  • Hall dedusting

Features:

  • Pressure-resistant to -500mbar
  • Pressure shock resistant up to +1 bar
  • For air volumes from 500 - 4000 m³/h
  • Quick-release fasteners for opening the chamber
  • Special versions Extra and Hygiene for food and pharmaceuticals
  • Optionally with swivelling slotted plate and tool-free filter change
  • For 3 - 36 filter elements
  • Filter area 4 - 60m²
  • Pneumatic cleaning with full immersion system
  • Optionally with integrated final filter

Materials:

  • Normal steel
  • In contact with product 1.4301 (V2A) or 1.4404 (V4A)
  • Complete 1.4301 (V2A) or 1.4404 (V4A)
  • Pressure tank made of mild steel, aluminium or stainless steel

Options:

  • Dust bucket or product discharge
  • Silencer
  • Fan
  • Maintenance opening
  • Integrated final filter
  • Fill level sensor
  • Throttle valve
  • Butterfly valve
  • Extinguishing system
  • Differential pressure measurement
  • Pressure relief systems (flameless or bursting disc)
  • Non-return flap
  • Version for installation in ATEX zone 21 or 22
