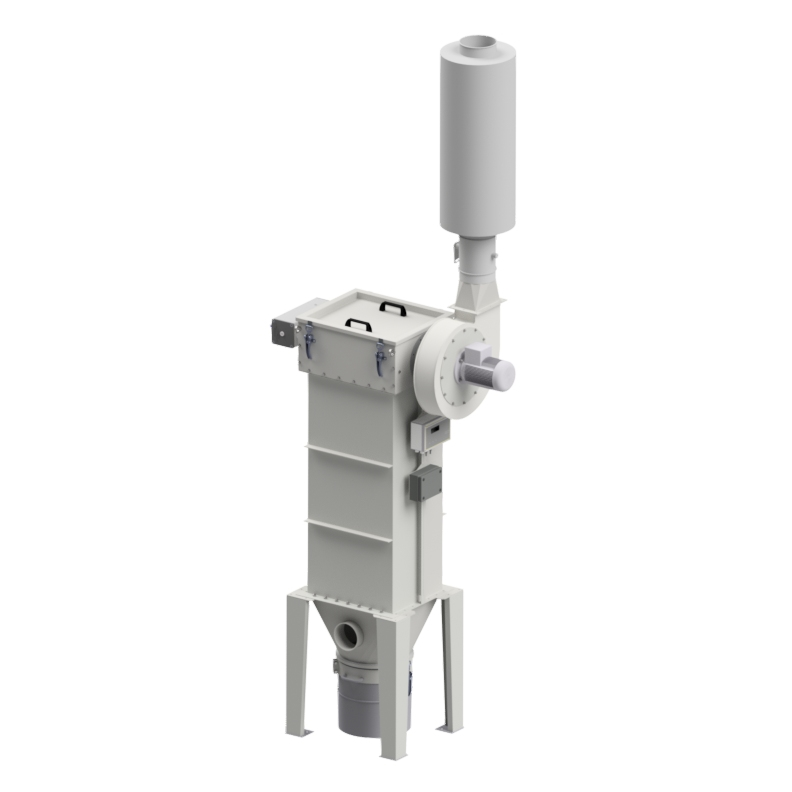

Dust extraction filter Aerstar AAS 4-1

Compact dust extraction filter as a free-standing unit with fan for the continuous extraction of small quantities of air and dust.

The design, fan and filter medium are customised precisely to the application, pressure and local conditions. Specially customisable for indoor air recirculation.

Main areas of application:

  • Dedusting of mixing plants
  • Dedusting of bottling plants
  • Process dedusting
  • Dust extraction during filling or emptying
  • Dedusting of weighing and dosing systems
  • Hall dedusting

Features:

  • Pressure-resistant to -500mbar
  • Pressure shock resistant up to +0.5 bar
  • For air volumes from 300 - 1500 m³/h
  • Quick-release fasteners for opening the chamber
  • For 4 filter elements
  • Filter area 3.5 - 40m²
  • Pneumatic cleaning with full immersion system
  • Optionally with integrated final filter

Materials:

  • Normal steel
  • In contact with product 1.4301 (V2A) or 1.4404 (V4A)
  • Complete 1.4301 (V2A) or 1.4404 (V4A)
  • Pressure tank made of mild steel, aluminium or stainless steel

Options:

  • Dustbin
  • Silencer
  • Fan
  • Integrated final filter
  • Fill level sensor
  • Throttle valve
  • Butterfly valve
  • Differential pressure measurement
  • Optionally with integrated final filter
  • Version for installation in ATEX zone 21 or 22
