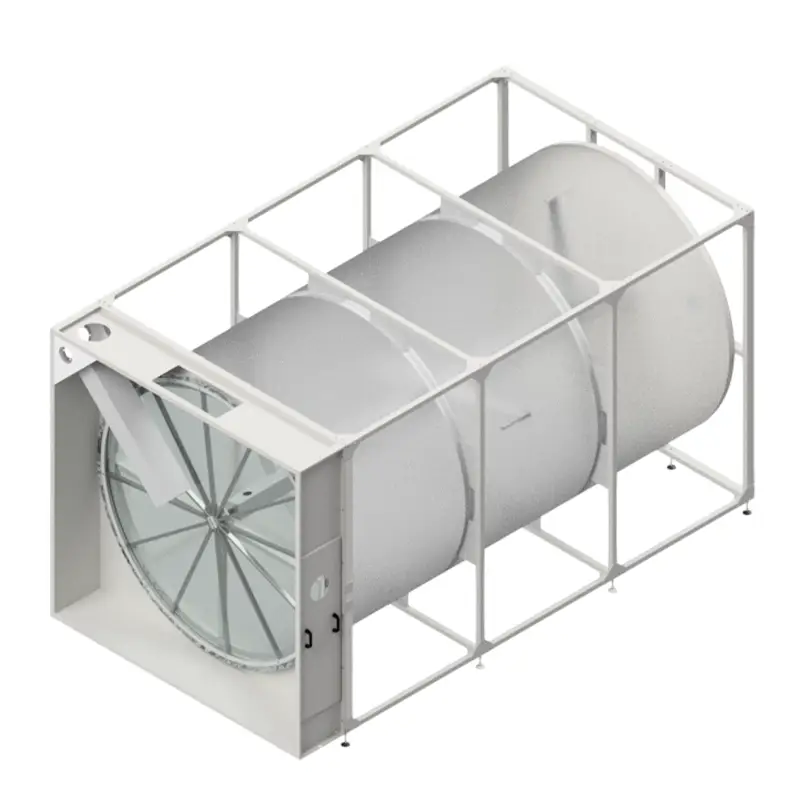

Drum filter TF

The TFB drum filter is used to filter large volumes of air in a wide variety of air filtration systems.

The material settles on the filter medium and is continuously extracted via nozzles. The diameter, length, filter medium and other features are designed according to the application and the conditions on site. An integrated pre-filter unit (TFC) can be fitted as an option for high material content in the air flow.

bg filtration Drum filter TF
bg filtration Drum filter TF
bg filtration Textile Filtration

Main areas of application:

  • Non-woven industry
  • Textile industry
  • Glass fibre industry
  • Wood processing industry
  • Paper industry
  • Hygiene articles
  • Automobile

Features:

  • Flow from the inside to the outside
  • High separation efficiency thanks to tested filter media
  • No pressure fluctuations in the system
  • Air volumes up to 130,000 m³/h
  • Temperatures up to 180°C
  • Filter purity up to F7
  • Cleaning air volume: max. 1,000 m³/h

Materials:

  • mild steel, painted
  • Galvanised steel

Options:

  • Pressurisation possible
  • ATEX version available
  • Integrated pre-filter unit (TFC)
  • Housing chamber
