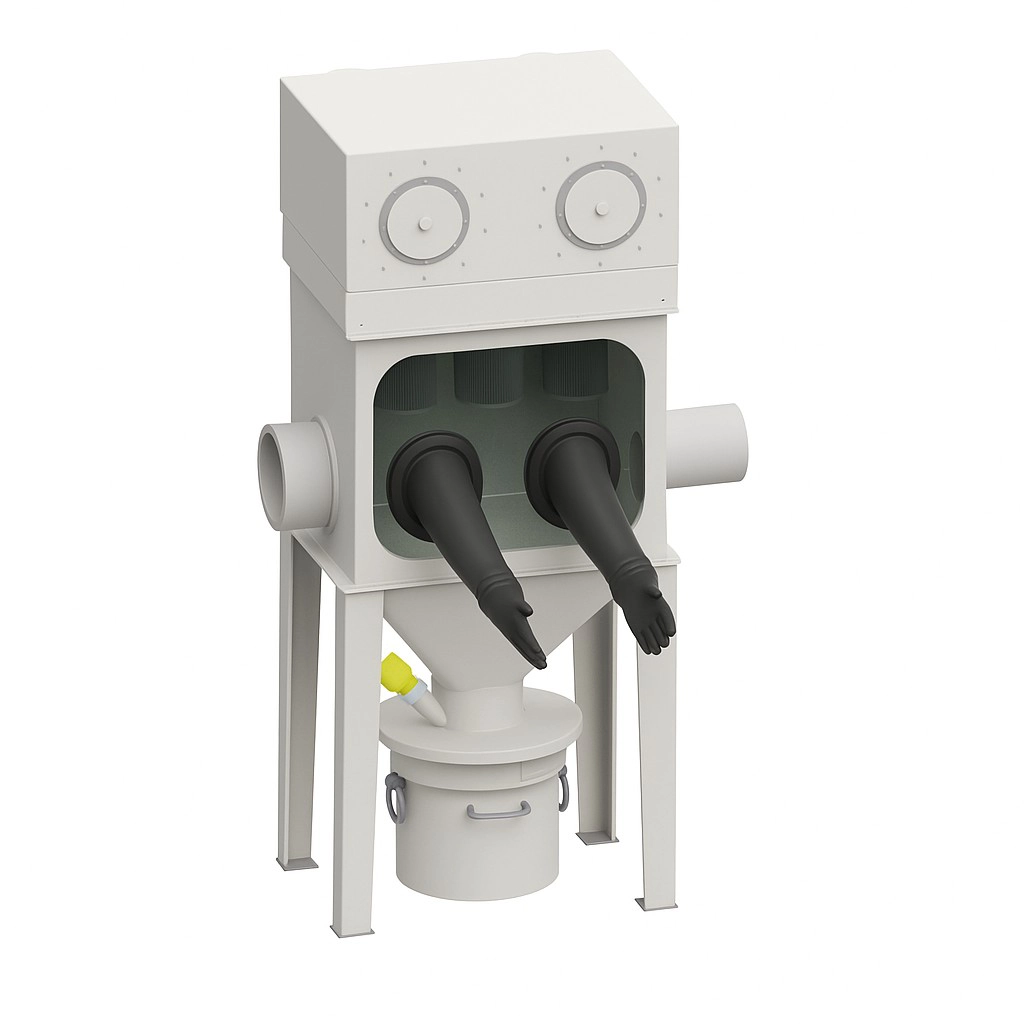

Innovative filter system with main and secondary filter stage, as well as safe replacement of filter elements, for the filtration of hazardous, sensitive or reactive substances.
In contrast to conventional filter systems on the market with filter cassettes that can only be cleaned to a limited extent, this filter has a fully cleanable main filter stage thanks to the use of vertically installed filter cartridges.
The cartridges are inserted into the filter via a vacuum lock and removed via a liner system. A large viewing window with a surround system at an ergonomic height makes it easy to attach and change the filter elements.
The cleaned product ends up in a dust bin with an integrated endless bag, ensuring safe disposal or even reuse.
The secondary filter stage located above is realised by class H14 final filter cartridges.
The filter is changed using the push-push method, whereby the contaminated filter medium is simply pushed into a liner system with a new medium.
Without risk, without contact with contaminated filter material.
Innovative technology for your safety.
Also available without power amplifier or with extraction fan.
Invest two minutes and in just two working days you will receive the right system design for your project as the basis for our initial discussions.
We will help you and find the best solution for you.
You can use our enquiry form to provide some details in advance.
